Piccolo RTU

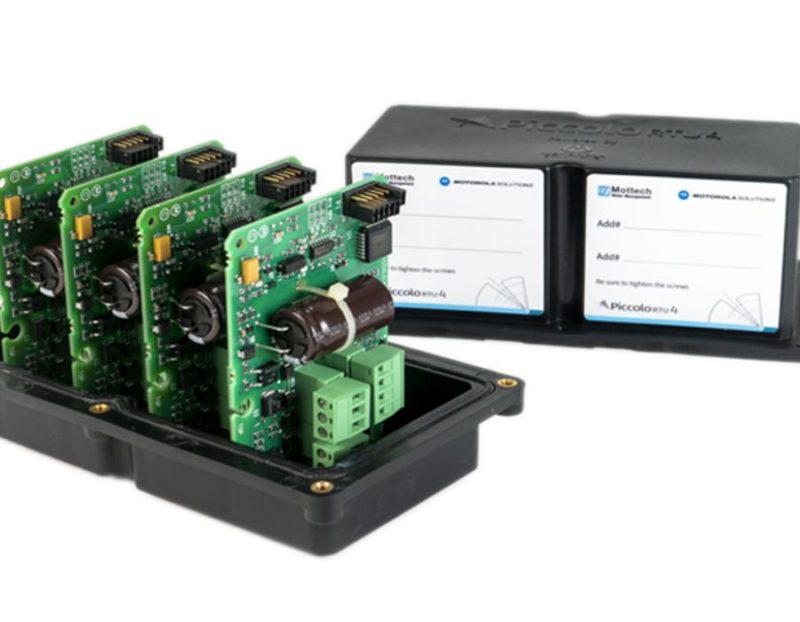

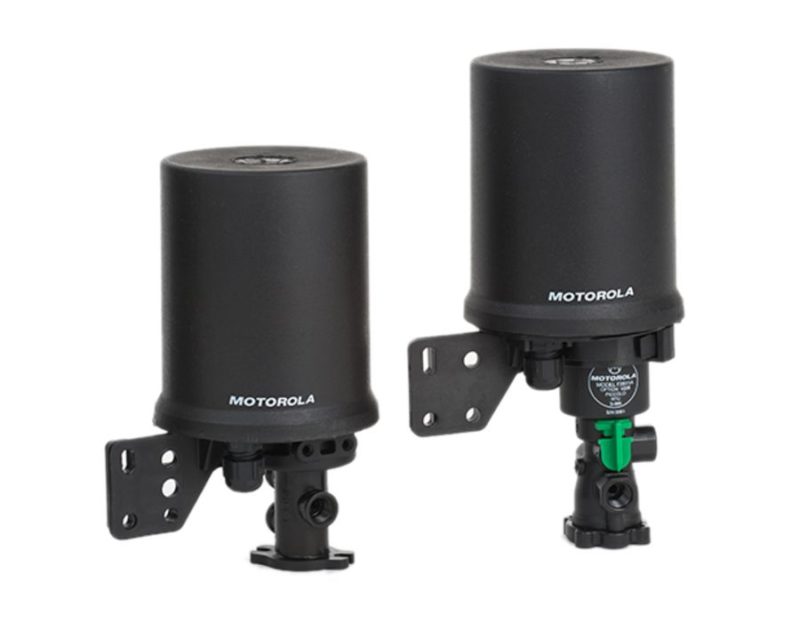

The Piccolo RTU is a small sized unit which consists of an electronic board and a 3-way latched solenoid, packed in an IP65 plastic housing.

The unit energizes one latched solenoid and receives two digital inputs such as: water meter contact, level transducer, pressure gauge etc.

The Piccolo RTU is connected in series on a 2 wire standard cable for a distance of up to 10 km to an IRRInet Single Cable module.

Up to 63 Piccolo RTUs may be hooked up along the cable. The Piccolo RTU is powered from the communication cable (no need for other power supply), which is connected to the Single Cable module mounted in the IRRInet unit.

Tens of thousands of units operating in the field indicate that this is one of the best units in communication via cable.


BROCHURE CONTACT US

Warranty

1 YEARWARRANTY
Categories: ,

Description

Highlights

  • Private, fast and reliable communication
  • Line communication – without additional costs
  • The cable is the energy source for the piccolo RTU
  • Commands to the local low-powered latched solenoid.
  • Two data inputs from sensors transmitted to the IRRInet over the wires, via the Single Cable module.

Technical Specifications

Power Consumption

  • 4 mA in operation mode
  • 0.4 mA in standby mode

Input

  • 2 digital inputs: “dry” contact: <10 KΩ = closed,> 50 KΩ =opened

Output

  • 3 wire solenoid
  • 1 output: 32-40V DC, 200 ms pulse

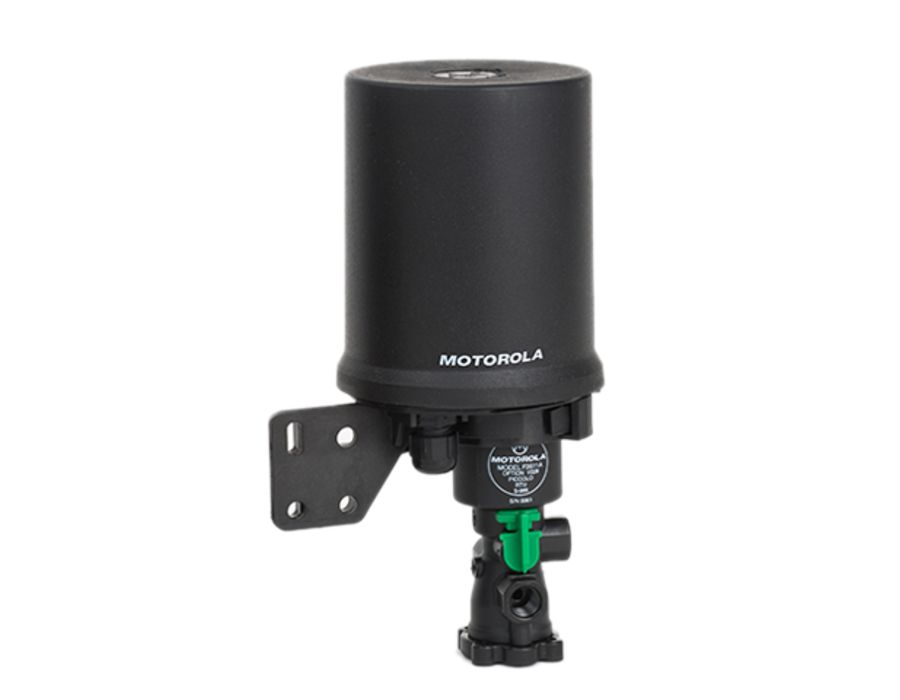

  • Two solenoids: Baccara or Bermad

Ambient Temperature

  • -30 ºC to +60 ºC (-22 ºF to +140 ºF)

Ambient Humidity

  • Up to 95% RH @ 50 ºC (non-condensing)
