Description

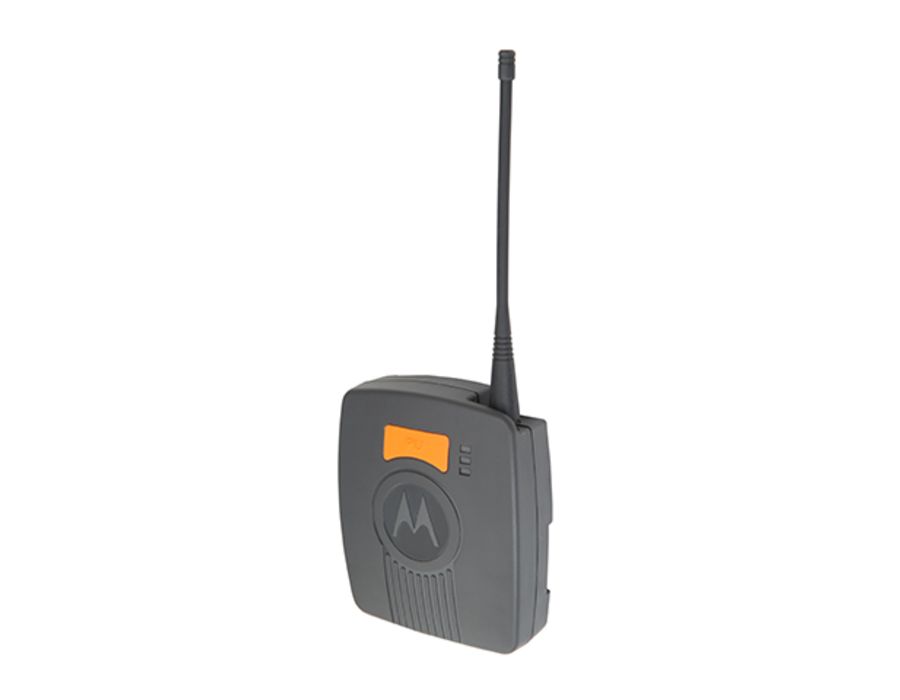

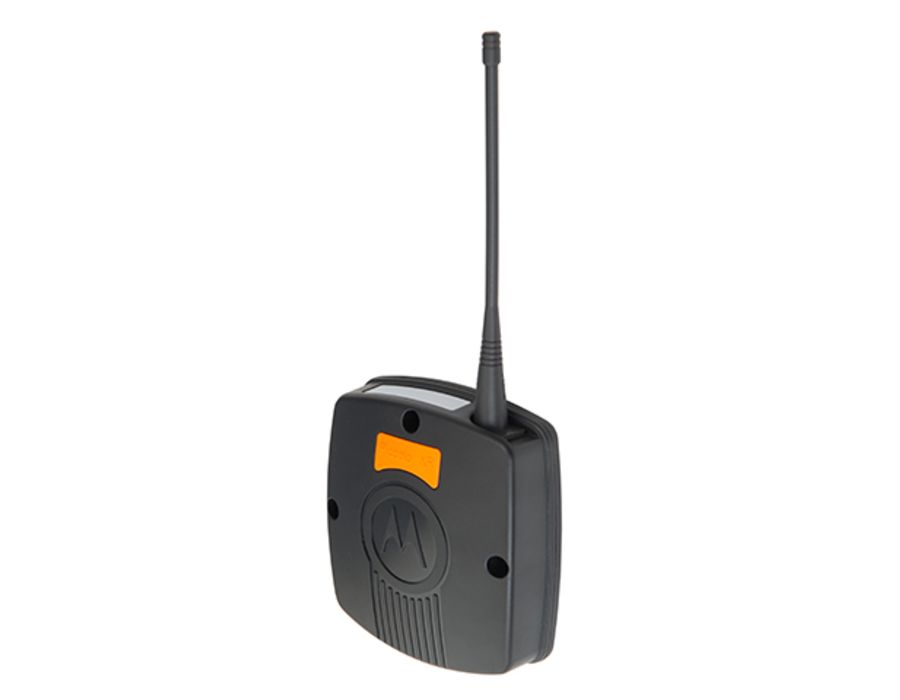

The Piccolo XR is a small sized wireless Remote Terminal Unit that operates as an integral part of the IRRInet system. The Piccolo XR operates up to 4 latched outputs and may receive up to 7 digital inputs (model dependent). The PIU (Piccolo XR Interface Unit) is connected to the IRRInet Field Unit, and communicates with Piccolo-XR units via its internal two-way low-power radio. The Piccolo XR and PIU are equipped with internal 10/100mWatt radios (configurable). In order to extend radio coverage, the Piccolo XR is capable of operating in a networking mode using numerous hops. Piccolo XR and XR Plus is available in seven different I/O modules:
- 1 DI / 1 DO
- 2 DI / 2 DO
- 4 DI / 4 DO
- 7 DI / 1 DO
- 6 DI / 6 DO
- 8 DI / 8 DO
- 12 DI / 4 DO

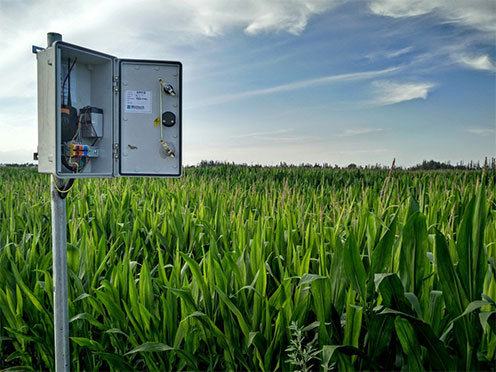

Thousands of XRs are installed around the world in use in applications that range from agriculture and municipal irrigation control systems to water supply systems.
Both the Piccolo XR and the PIU are equipped with configurable internal 10/100 mW radios to extend radio coverage. They can function as part of the communication network, using store and forward protocols.
Piccolo XR is a high-efficiency unit with very low power requirements. It ships complete with a 6V/90 mA solar panel to prolong the battery’s lifespan, provide a stable energy source, and ensure reliable communications. With its self-contained, secure enclosure, Piccolo XR installs and is ready to work with IRRInet in just minutes.
The Piccolo XR series has been designed to work in nearly all environments.
Features
Self-Sufficient
The Cabinet Assembly System (CAS) is a Mottech enclosure with a built in solar panel and a strong integrated locking system to prevent vandalism and un-authorized access.
The Piccolo XR is a high efficiency unit designed with very low power requirements. The unit ships complete with a 6V/90mA solar panel, designed to extend the life of the battery, provide a stable energy source and insure reliable communications.
Capability
The XR is utilized in hundreds of various applications across thousands of units.
- Asset Management Control
- Master valve control – Within HOA’s, and Cities, the XR is wireless controlling Master Valves to minimize risk associated with broken Mainlines and Valves that fail in the open position.
- Monitoring Options – Tracking flow, Pressure, Water Levels, Soil Moisture, pH and Salinity.
Advanced and autonomic communication capabilities
The Piccolo XR communication using an integrated, low power radio providing range capabilities of 2-3 km depending on the terrain. Powerful Store and Forward capabilities allow for extended coverage using multiple XR units deployed in a an advance network methodology.
Highlights
- Integral unit of the IRRInet system
- Powerful Store & Forward capabilities
- Very Low power consumption
- 4 different models
Technical Specifications:
Frequency range (PIU and Piccolo XR)
PIU – I/O capacity
- Up to 248 inputs and 248 outputs
- Internal UHF two way radio
- RS232 communication to IRRInet field unit
- RS485 communication to IRRInet field unit
Piccolo XR and PIU Power Supply
- External 6VDC for Piccolo XR
- 6 to 12VDC for PIU
Available I/O models
- 1 DI / 1 2 DO
- 2 DI / 2 DO
- 4 DI / 4 DO
- 7 DI / 1 DO
Environmental Conditions
Operating temperature: -30° C to + 60° C
(-22° F to + 140° F)
